TT ( BANTAM ) CIRCUIT GUARD PLUGS
JACK PANELS
?
FAX: 773 792-2129
* Please visit the product pages on our website for the most up-to-date product information

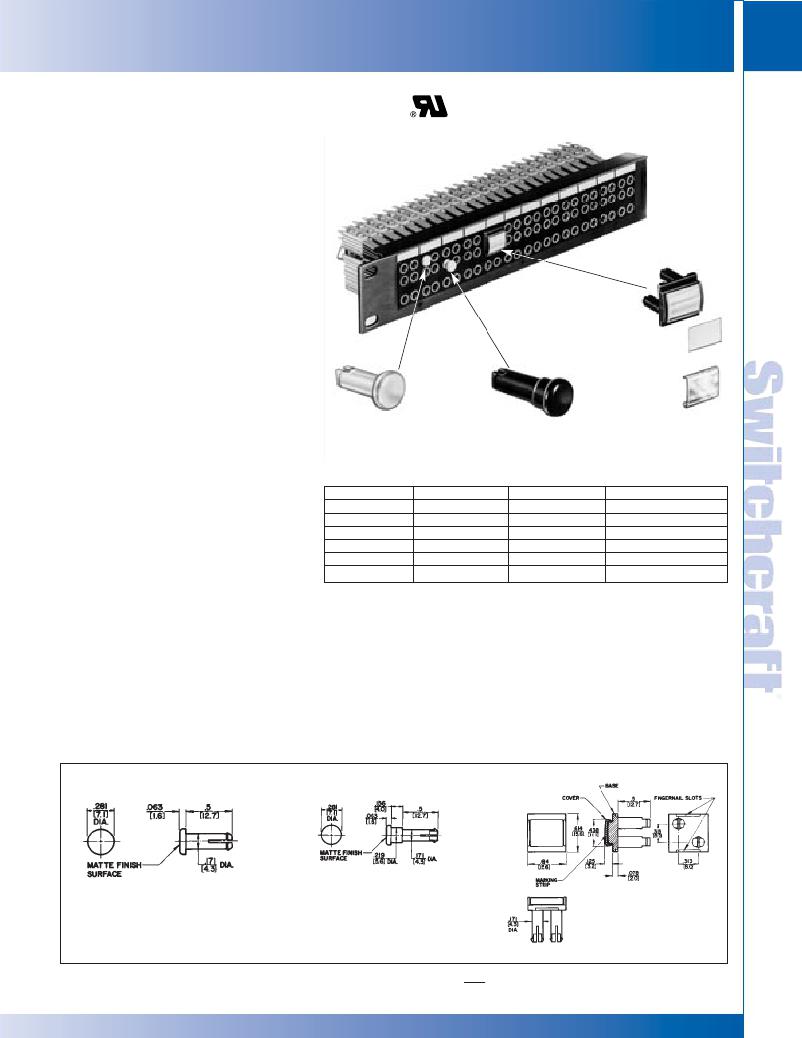

TT ? (BANTAM) CIRCUIT GUARD PLUGS
APPLICATION
Circuit guard plugs snap into TT-Jax ? (bantam)
jacks eliminating accidental or unauthorized
insertion of a plug into a critical circuit. The circuit
guards plugs do not actuate the jack springs.
These plugs seal the jack bushing and provide
an additional means of circuit identification.
Circuit guard plugs are available in three
233
different designs: Series TT512, Series TT513
and Series TT514. All three designs are molded
thermoplastic and are available in the following
colors: red, black, green, blue, white or yellow.
SERIES TT512
TT512 circuit guard plugs cover an individual
jack opening and insert to an virtually flush
position with the front panel.
Base
Marking Strip
SERIES TT513
TT513 circuit guard plugs are similar to the
Series TT512 except the button extends
.219" from the front of the panel for easier
Series TT512
Series TT513
Cover
Series
514
removal.
SERIES TT514
TT514 circuit guard plugs cover both the IN and
OUT jacks of two adjoining circuits while leaving
the monitor jacks exposed for circuit testing.
The four jack circuit guard plugs also include a
matte finish white plastic marking strip and
a clear extruded plastic window for additional
designation.
Part Number
TT5121
TT5122
TT5123
TT5124
TT5125
TT5128
Part Number
TT5131
TT5132
TT5133
TT5134
TT5135
TT5138
Part Number
TT5141*
TT5142*
TT5143*
TT5144*
TT5145*
TT5148*
Color
Red
Black
Green
Blue
White
Yellow
SPECIFICATIONS
TT512 and TT513: Molded thermoplastic in colors.
TT514: Base: Molded thermoplastic in colors.
Marking Strip: Matte finish white plastic.
Cover: Clear extruded plastic.
ORDERING
1. Order by part number from table.
2. Contact Switchcraft for any special order items.
*Includes base, marking strip & cover.
Series TT-512
Series TT-513
DIMENSIONS ARE FOR REFERENCE ONLY
Inch
(mm)
Series TT-514
SWITCHCRAFT, INC. 5555 N. Elston Ave. ? Chicago, IL 60630
